Begravningsbårar

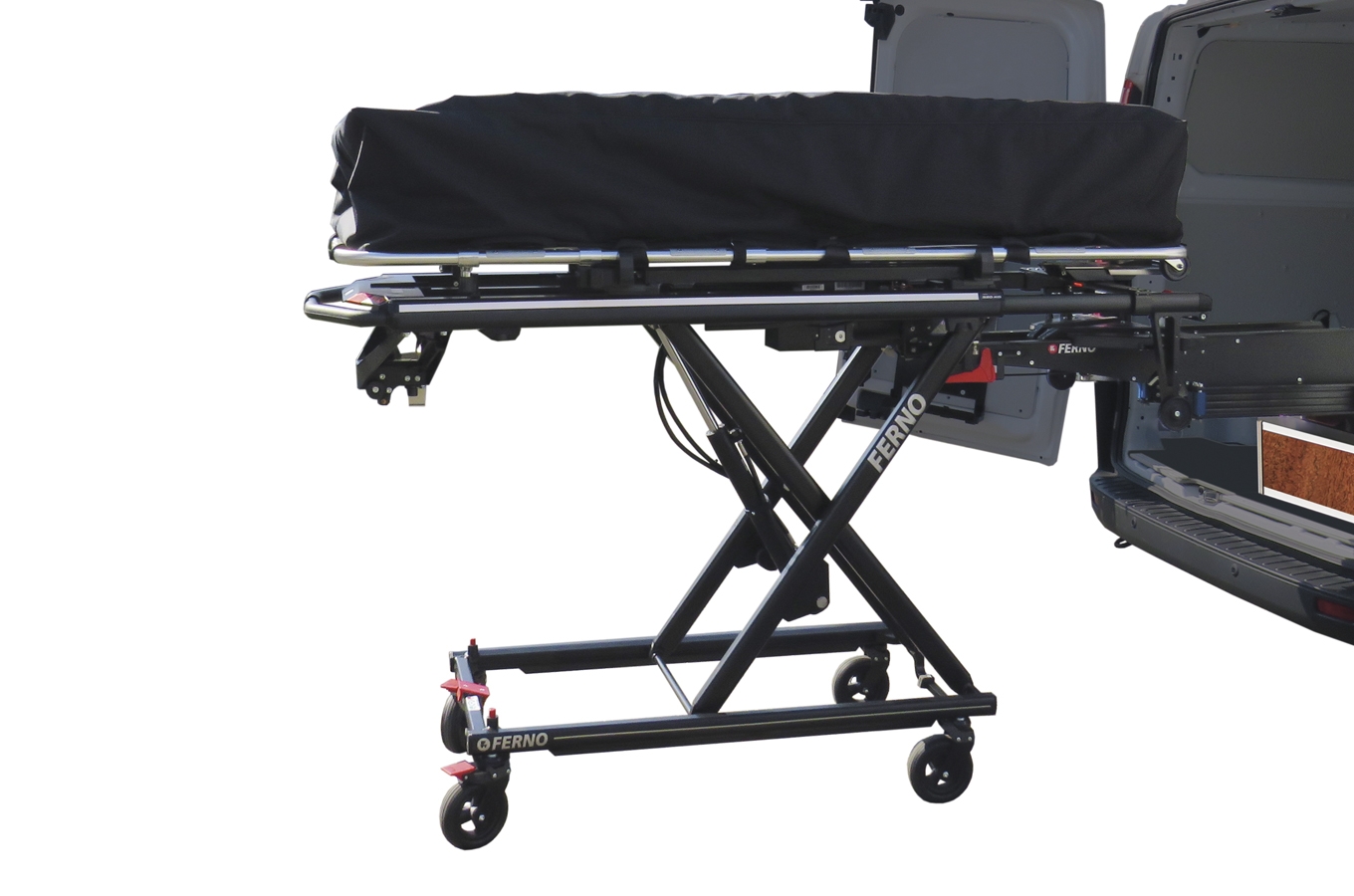

VIPER-F – Power Mortuary Stretcher with Loading System

The VIPER-F is a high-performance electric mortuary stretcher designed for modern, professional funeral services. With a load capacity of 320 kg and a lifting height up to 90 cm, it offers ergonomic, intuitive operation and exceptional maneuverability.

The VIPER-F includes a wide lift-off Stretcher Model 11BS with adapters to also carry a coffin. One product that handles both transports of bodies on a’ lift-off stretchers or in a ‘coffin.

  • Electrohydraulic lifting system – smooth raising and lowering at the push of a button.
  • Ergonomic and user-friendly – intuitive +/- controls and soft-start/stop function.
  • Durable and easy to maneuver – aluminum frame with 150 mm swivel wheels and full rubber soft tires.
  • Automatic loading system – vehicle integration allows effortless loading/unloading, even on uneven surfaces.
  • Crash-tested vehicle mount included – with telescopic guides and auto-lock for secure fixation.
  • Integrated tablet/smartphone connectivity for setting height parameters and monitoring system status.
  • Onboard battery system – automatically recharges when docked in the vehicle.
VIPER-F – Power Mortuary Stretcher with Loading System

Adapter V 161 S – Multi-Function Coffin & Stretcher Adapter

  • Secure stretcher lock – prevents vertical lifting during transport.
  • Dual mode operation:
  • With brackets folded down: transports FERNO heavy-duty stretcher 11 BS.
  • With brackets upright: securely holds a coffin.
  • Quick-mount system – easily attaches to the frame and locks into place.
  • End-stop plate (M 3369) – adds extra safety during stretcher transport.

Vehicle Loading System (Standard Equipment)

  • Easy and smooth insertion/removal with ball-bearing telescopic guides.
  • Mechanical centering allows angled entry.
  • Manual override system for loading/unloading without power.
  • Battery charging starts automatically when docked.

11BS Lift-Off Stretcher

  • 10 cm wider than regular transfer stretchers
  • Extra lightweight yet loadable up to 250 kg
  • Designed specifically for the transport of very heavy individuals
Art. Nr F1030
Lastkapacitet 320kg (400 kg)
Vikt 75 kg (66kg)
Höjd 38-133cm
Längd 160-200 cm
Bredd 60 cm (57cm)
